Deploying Rasa with Efficiency: Leveraging Helm Charts

Copy of Cloud_Animation01

Imagine owning a bustling restaurant with customers placing orders both online and in person. From time to time, customers will have questions or encounter issues, and handling these inquiries efficiently can enhance their overall experience. To streamline this, you might consider building a custom chatbot. But isn’t building a chatbot complicated? No, not at all—especially with Rasa’s help.

In this blog, we’ll guide you through the process of building and deploying a sample Rasa chatbot on an AWS EKS (Elastic Kubernetes Service) cluster using Helm. Rasa, a powerful open-source conversational AI platform, allows you to create highly customizable chatbots, while Helm simplifies the deployment process by managing Kubernetes applications with ease.

We will walk you through Helm charts, which streamline and automate the deployment process, and show you how to set up an AWS EKS cluster specifically for your Rasa chatbot. Additionally, we’ll configure AWS Load Balancers to connect your chatbot to customers, ensuring it’s publicly accessible and ready to handle inquiries efficiently.

This guide will equip you with the necessary tools, AWS configurations, and knowledge to bring your chatbot to life, regardless of your familiarity with Rasa. So grab your coding toolkit, your AWS credentials, and your curiosity, and let’s turn your chatbot vision into reality with Rasa and Helm!

 Prerequisites:

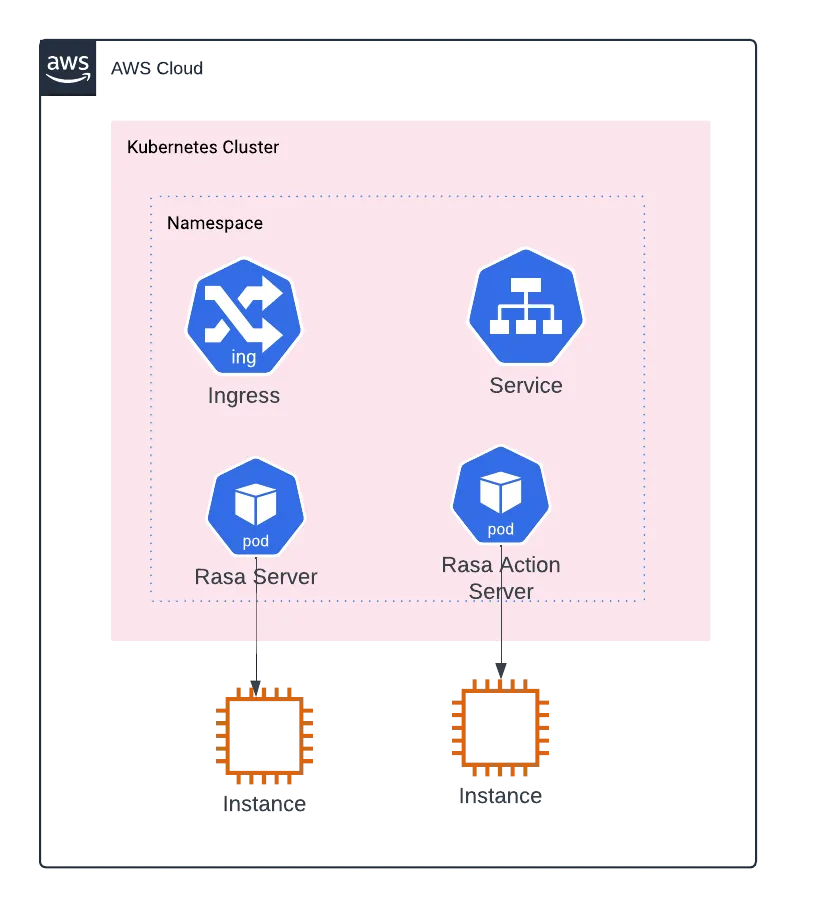

Target architecture

Rasa end architecture
Rasa end architecture

What is Rasa?

Rasa is an open-source conversational AI platform that allows developers to build chatbots and voice assistants. It provides a framework for natural language understanding (NLU) and dialogue management and integrates with a wide range of messaging channels and third-party systems. It also allows the user to train the model and add custom actions.

What is Helm Charts?

Helm Charts is an open-source package manager for Kubernetes that helps you manage the deployment, configuration, and lifecycle of your Kubernetes applications. It simplifies the installation, upgrade, and sharing of Kubernetes applications across various environments by packaging a Kubernetes application and all its dependencies into a single unit.

The application we are going to build is a simple Rasa application that uses Rasa open-source image. The Rasa action server, handling the custom actions for our application, will receive the request from the application (you can skip this step if you just want to deploy a Rasa server). We provide a concise overview of the deployment process below.

Overview of the deployment process
  1. Install Required Packages: Make sure you have the necessary tools and dependencies for building and deploying the Rasa application.
  2. Create an AWS EKS Cluster: Utilize the provided CloudFormation template (CFT) to establish an AWS EKS cluster, which will serve as the foundation for deploying your Rasa application.
  3. Set Up a Rasa Deployment Environment: Set up the EKS cluster to establish a dedicated Rasa deployment environment. This environment will provide you with the necessary resources to run your Rasa application smoothly.
  4. Deploy the Rasa Action Server (Optional): If your application requires custom actions, deploy the Rasa action server within the EKS cluster. The action server will be in charge of executing these custom actions.
  5. Deploy the Rasa Application: Once the environment is ready, deploy the Rasa application onto the EKS cluster. This will make your Rasa application accessible and ready to process user interactions.

By following these steps, you can successfully deploy your Rasa application on AWS EKS, allowing you to leverage Rasa’s power to create engaging and effective conversational AI experiences.

Install required packages

To install Kubectl, helm, and eksctl in your local environment, use the following command in your terminal.

Download and Install kubectl
# Download the kubectl binary
curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"

# Apply execute permissions to the binary
chmod +x ./kubectl

# Add kubectl to the path
mkdir -p $HOME/bin && cp ./kubectl $HOME/bin/kubectl

# Add the export to bash profile
echo 'export PATH=$HOME/bin:$PATH' >> ~/.bashrc

# Execute the contents of bashrc which will add the kubectl to the path
source ~/.bashrc

# Verify installation
kubectl version --short --client
Download and Install eksctl
# Download the eksctl compressed file and extract it to /tmp
sudo curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp

# Move the extracted eksctl binary to the /usr/local/bin directory
sudo mv /tmp/eksctl /usr/local/bin

# Verify installation
eksctl version



Download & Install helm
# Download the helm compressed file
curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3

# Change permission
chmod 700 ./get_helm.sh

# Install bash
DESIRED_VERSION=v3.8.2 bash get_helm.sh



Create an AWS EKS cluster using the Cloud Formation template

On your local machine, create a yaml file called cluster.yaml. Copy and paste the following content into it. Please change the configuration like region, vpc Id, subnet Id, instanceType, and addons as per your requirement.

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name:
  region: us-east-1
  version: '1.28'
  annotations:
    kubernetes.io/ingress.class: alb
vpc:
  id:
  subnets:
    private:
      us-east-1a:
        id:
      us-east-1b:
        id:
privateCluster:
  enabled: false
  skipEndpointCreation: true
nodeGroups:
  - name:
    labels: { role: workers }
    instanceType: m5.2xlarge
    desiredCapacity: 2
    volumeSize: 80
    privateNetworking: false

addons:
  - name: aws-ebs-csi-driver
    version: latest
  - name: aws-vpc-cni
    version: latest
  - name: coredns
    version: latest
  - name: kube-proxy
    version: latest
cloudWatch:
  clusterLogging:
    enableTypes:
      - all
    logRetentionInDays: 7



Run the command eksctl create cluster -f cluster.yaml to create the cluster.

Create an environment for Rasa deployment

# Create a new namespace
kubectl create namespace

# Install AWS LoadBalancer controller (Note: This is only mandatory for the provisioning of internal load balancer).
curl https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.4.7/docs/install/iam_policy.json -o aws-load-balancer-controller-policy.json

# Create an IAM Policy using the downloaded policy.json which will be used by the service account
aws iam create-policy \
    --policy-name RasaLoadBalancerControllerIAMPolicy \
    --policy-document file://aws-load-balancer-controller-policy.json

# Create a service account - It will give an identity to your Pods
eksctl create iamserviceaccount \
  --cluster= \
  --namespace= \
  --name=aws-load-balancer-controller \
  --role-name RasaEKSLoadBalancerControllerRole \
  --attach-policy-arn= \
  --approve

# Add EKS Helm chart repo to local Helm client.
helm repo add eks https://aws.github.io/eks-charts

# will fetch the chart index files
helm repo update eks

# Install the controller with the service account that is created in the above step
helm install aws-load-balancer-controller eks/aws-load-balancer-controller \
  -n  \
  --set clusterName= \
  --set serviceAccount.create=false \
  --set serviceAccount.name=aws-load-balancer-controller

# verify the deployment - get all deployment details in the given namespace
kubectl get deployment -n

Deploy the Rasa action server in the EKS cluster (optional)

What is the Rasa action server?

A Rasa action server enables us to execute custom actions for a Rasa Open Source conversational assistant. Consider the Rasa action server to be the backend API for your Rasa application. When your Rasa assistant predicts a custom action (action_hello_world), the Rasa server sends a POST request to the action server with a JSON payload that includes the name of the predicted action, the conversation ID, the tracker contents, and the domain contents.

The Rasa server then returns the user’s responses and adds the events to the conversation tracker. Use the below-given Python code or the sample rasa action server code provided by the Rasa team.

class ActionHelloWorld(Action):

    def name(self) -> Text:
        return "action_hello_world"

    def run(self, dispatcher: CollectingDispatcher,
            tracker: Tracker,
            domain: Dict[Text, Any]) -> List[Dict[Text, Any]]:

        dispatcher.utter_message(text="Hello World!")

        return []



To deploy the basic Rasa action server, create a rasa-action-values.yaml file. Use Docker to deploy the Rasa action server separately, then install it in the EKS cluster using the provided rasa-action-values.yaml.

applicationSettings:
  port: 5055
  scheme: http

replicaCount: 1

image:
  name:
  tag: "1.0"
  repository: ""
  pullPolicy: Always

service:
  type: NodePort
  port: 80

ingress:
  enabled: false



Save the file, and then use the helm command to deploy the Rasa action server.

# Add helm rasa repo
helm repo add rasa https://helm.rasa.com

# Install or Upgrade the rasa action server
helm upgrade --install --namespace  --values rasa-action-values.yaml  rasa/rasa-action-server

In the given namespace, use the following command to get the name of the deployed services for the Rasa action server.

 kubectl get svc -n <namespace_name>

To create an ingress resource for your action server, create a file named rasa-action-ingress.yaml.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  namespace: rasa
  name:
  annotations:
    alb.ingress.kubernetes.io/scheme: internal
    alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/subnets:
    kubernetes.io/ingress.class: alb
    #By default the ingress(ALB) will be open to all ports and IPs. To connect with only the rasa application give VPC CIDR ips in which the eks cluster resides.
    alb.ingress.kubernetes.io/inbound-cidrs:
spec:
  ingressClassName: alb
  rules:
    - http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name:
              port:
                number: 80



For the rasa action server, create an ingress resource using helm and the above-given yaml.

# Create an ingress (internal ALB) for rasa action
kubectl apply -f rasa-action-ingress.yaml

# get the internal action server ALB hostname (this URL is needed)
kubectl get -f rasa-action-ingress.yaml -o jsonpath="{.status.loadBalancer.ingress[0].hostname}"

Deploy the Rasa application in the EKS cluster

To deploy the basic Rasa action server, create a rasa-values.yaml file.

applicationSettings:
  debugMode: true
  trainInitialModel: true
  port: 5005
  scheme: http
  enableAPI: true
  credentials:
    enabled: true

replicaCount: 1
autoscaling:
  enabled: false

serviceAccount:
  create: false

ingress:
  enabled: true
  annotations:
    alb.ingress.kubernetes.io/subnets:
  # remove the below-given section if not needed
  tls:
    - secretName: chart-example-tls
      hosts:
        - chart-example.local
  pathType: Prefix
  path: /
  hostname: "chart-example.local"

command: ["/bin/sh", "-c", "rasa run --cors * --enable-api -vv"]

registry: docker.io/rasa
image:
  name: rasa
  tag: "3.2.6"
  pullPolicy: Always

service:
  type: NodePort
  port: 443 # can change it to 80 for HTTP and remove the tls section from ingress if you don't want to deploy your app in HTTPS(443)

# Avoid the below-given code if you are not using the rasa-action server
rasa-action-server:
  install: false
  external:
    enabled: true
    url: "/webhook"
action:
  endpointURL: "/webhook"
# Install or Upgrade the rasa application (rasa/rasa helm chart) using rasa-values
helm upgrade --install --namespace rasa --values rasa-values.yaml  rasa/rasa

Create an ingress resource for the Rasa application using the following yaml file.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  namespace: rasa
  name:
  annotations:
    alb.ingress.kubernetes.io/scheme: external
    alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/subnets:
    kubernetes.io/ingress.class: alb
spec:
  ingressClassName: alb
  rules:
    - http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name:
              port:
                number: 80

Save the file and deploy the ingress resource.

# Create an ingress (internal ALB) for rasa
kubectl apply -f rasa-ingress.yaml

# get the rasa internal ALB hostname
kubectl get -f rasa-ingress.yaml -o jsonpath="{.status.loadBalancer.ingress[0].hostname}"


# some useful commands
kubectl get all -n  # List all resources in the given namespace
kubectl delete ingress  -n  # delete the ingress resource in the given namespace
kubectl describe ingress  -n  # delete the ingress resource in the given namespace
kubetcl get logs -f  -n  # Get the logs of the given pod
kubectl describe  -n  # Gives the details of the given pod
kubectl logs  -n  -c  # Get the logs of the container in the given pod



Now that we have our Rasa application, we can connect it to our Rasa action server. Use Postman to test the connection, or use the curl command in your terminal.

Conclusion

Voila! We have successfully built our first chatbot. In this blog, we walked through the process of creating a chatbot using Helm charts, deploying the application in an EKS (Elastic Kubernetes Service) cluster, and exposing it to the public through an AWS load balancer.

Additionally, you can easily integrate the chatbot into any application or use it as a standalone service. You can interact with it through its API, which opens up a wide range of possibilities for further development and customization.

This setup ensures high availability, flexibility, and the ability to scale as your chatbot grows. You now have the foundational architecture to support future improvements, whether your plans involve extending its functionality, integrating it with other services, or enhancing its AI capabilities.

With the deployment in place, you are ready to expand this chatbot’s use cases and continue enhancing its capabilities. Happy coding!

Reference

  1. https://rasa.com/docs/rasa/deploy/deploy-rasa/
  2. https://docs.aws.amazon.com/eks/latest/userguide/helm.html
  3. https://docs.aws.amazon.com/prescriptive-guidance/latest/patterns/deploy-kubernetes-resources-and-packages-using-amazon-eks-and-a-helm-chart-repository-in-amazon-s3.html
  4. https://kubernetes.io/docs/reference/kubectl/quick-reference/
