If you have wondered why apps have become smarter lately, it is not just better features—it’s a fundamental architectural shift that has been building for over a decade.
In 2010, had you asked an architect about application design, you would have likely gotten a neat diagram with three boxes: UI, business logic, and data. The classic 3-tier architecture served as the benchmark, offering a systematic approach to separate concerns, allocate responsibilities, and handle changes.
Think of software architecture as city planning. In 2010, we built in the style of suburban developments with distinct residential, commercial, and industrial zones. Today, we’re building more like modern mixed-use districts where everything interconnects.
Fifteen years later, those three boxes still exist, but they have stretched, blurred, and, in many cases, morphed into something unrecognizable.
Here’s a look at how the 3-tier model evolved and what that says about the systems we’re building now.

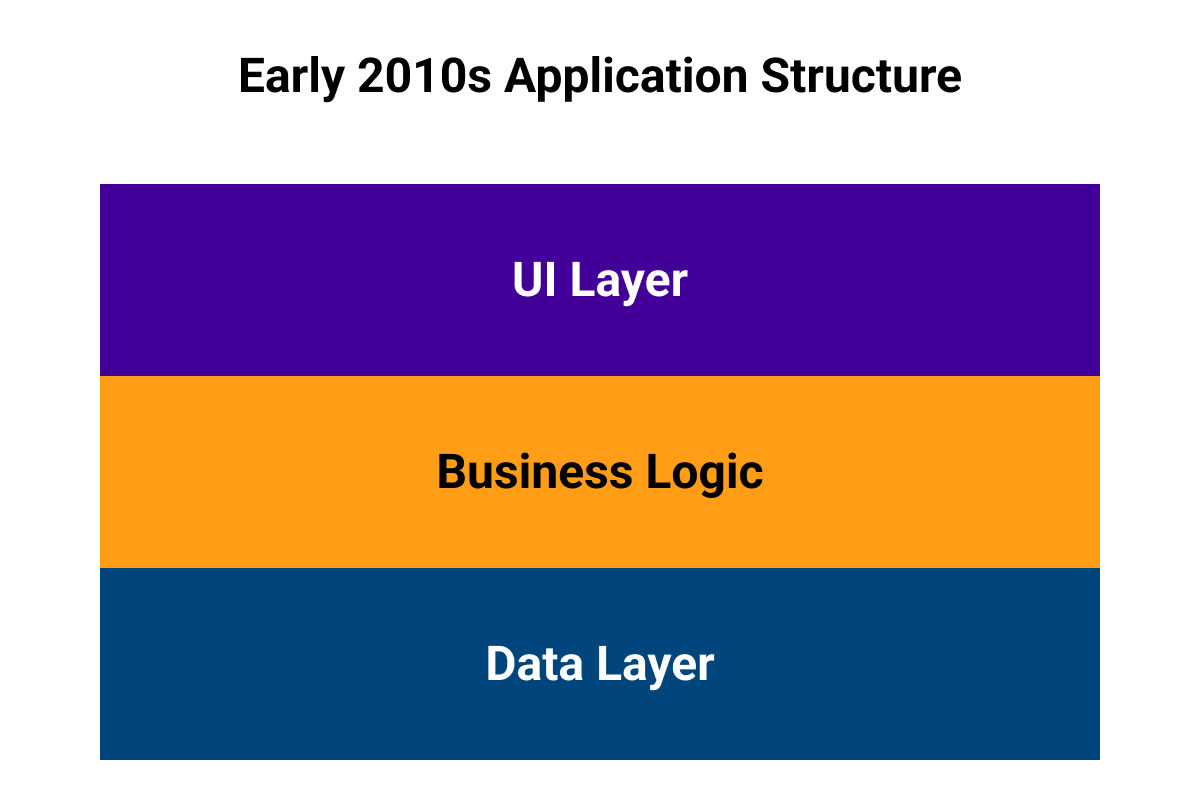

2010–2013: The Era of Structure
It was predictable in the early 2010s. Applications followed a familiar N-tier structure:
- A presentation layer (web UI or mobile interface)
- A business layer (often .NET or Java-based logic)
- A data layer (mostly relational databases)
These systems were mostly monoliths, running on on-prem infrastructure or early virtual machines. Delivery followed Waterfall or early Agile patterns. Scalability meant provisioning larger servers. Architecture lives in static diagrams, not code.
This model emphasized separation of concerns, but at the cost of agility.
But this structured approach came with hidden costs. As mobile usage exploded and user expectations shifted toward real-time experiences, the limitations of monolithic, server-bound architectures became painfully clear. The stage was set for the first major evolution.
What was holding us back:
- Economic reality: Maintaining expensive data centers and predicting capacity became cost-prohibitive compared to the cloud’s pay-as-you-go model.
- Technical breaking points: Physical servers hit scalability walls during traffic spikes, leading to outages and lost revenue.

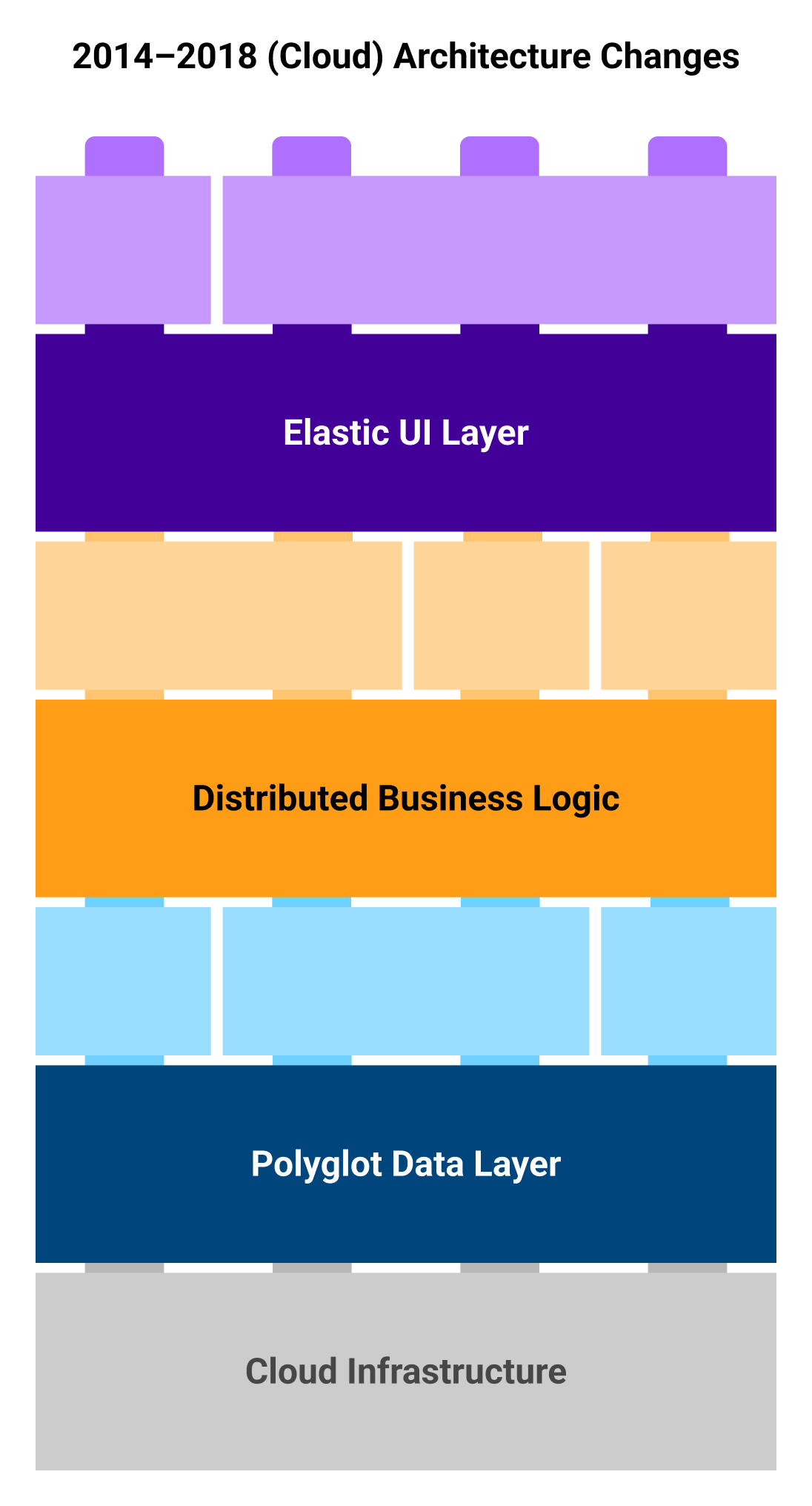

2014–2018: Cloud Hosting Begins to Stretch the Model
Cloud changed the game—but cautiously at first. Teams lifted and shifted their 3-tier apps to platforms like Azure App Services or AWS Elastic Beanstalk. CI/CD pipelines (automated testing and deployment) started emerging. APIs began carving out parts of the business logic. Horizontal scaling became easier.
- The tiers remained—but they became hosted and elastic.
- The data layer diversified, with NoSQL and blob storage options introduced
- Message queues and integration services entered the picture
We still drew 3-tier diagrams, but the physical deployment looked more like a web of services.
The cloud migration solved scalability, but a new problem emerged: even elastic monoliths became deployment bottlenecks. As organizations grew and teams expanded, the limitations of centralized architectures became the next constraint to overcome.
What started to break:
- Reliability demands: Single points of failure became unacceptable as applications became mission-critical. A database crash should not bring down the entire business.
- Data explosion: Traditional relational databases could not handle the variety (structured, unstructured, streaming) and velocity of modern data sources.

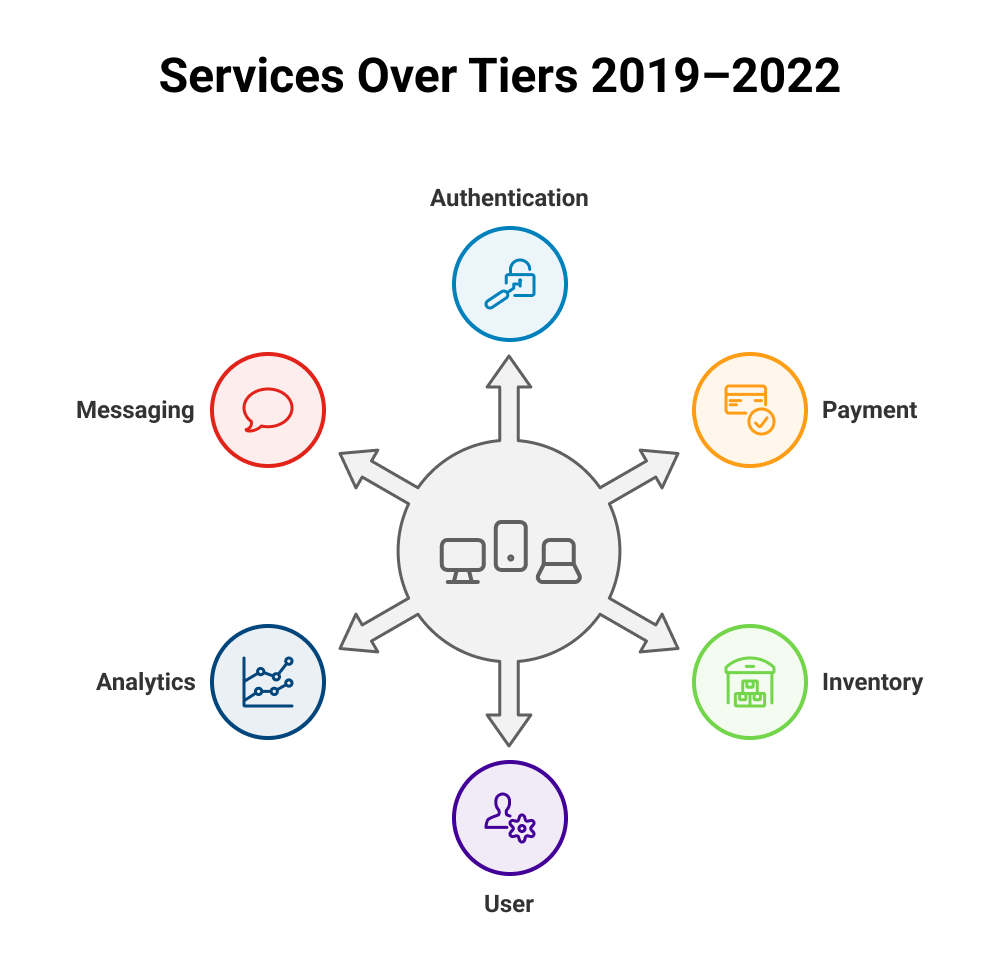

2019–2022: Services Over Tiers
As microservices, container orchestration, and serverless computing matured, the notion of strict tiers started breaking down.
- Business logic was no longer centralized—it lived across independently deployable services.
- Data was not in one place—teams adopted polyglot persistence (using different database types for different needs: relational + NoSQL + graph).
- UI layers became thinner, powered by headless APIs and mobile SDKs.
Even monoliths were evolving internally—layering APIs over core logic, carving out reporting engines, and adopting event-driven design (systems that react to things happening rather than being constantly polled).
The architecture moved from “tiers of components” to “systems of responsibility.”
By 2022, organizations had mature data platforms and distributed architectures, but a new competitive reality emerged: customer expectations for intelligent, personalized experiences weren’t just nice-to-have features anymore—they were table stakes for survival.
What Outgrew:
- Competitive advantage: ChatGPT’s launch in late 2022 showed that AI could be a fundamental differentiator, not just an experimental add-on. Companies without AI strategies risked obsolescence.
- User expectations: Consumers, shaped by Netflix recommendations and Google search, began expecting every application to “know” them and anticipate their needs.
- Data maturity: After a decade of collecting data, organizations finally had enough quality information to train meaningful models and derive actionable insights.

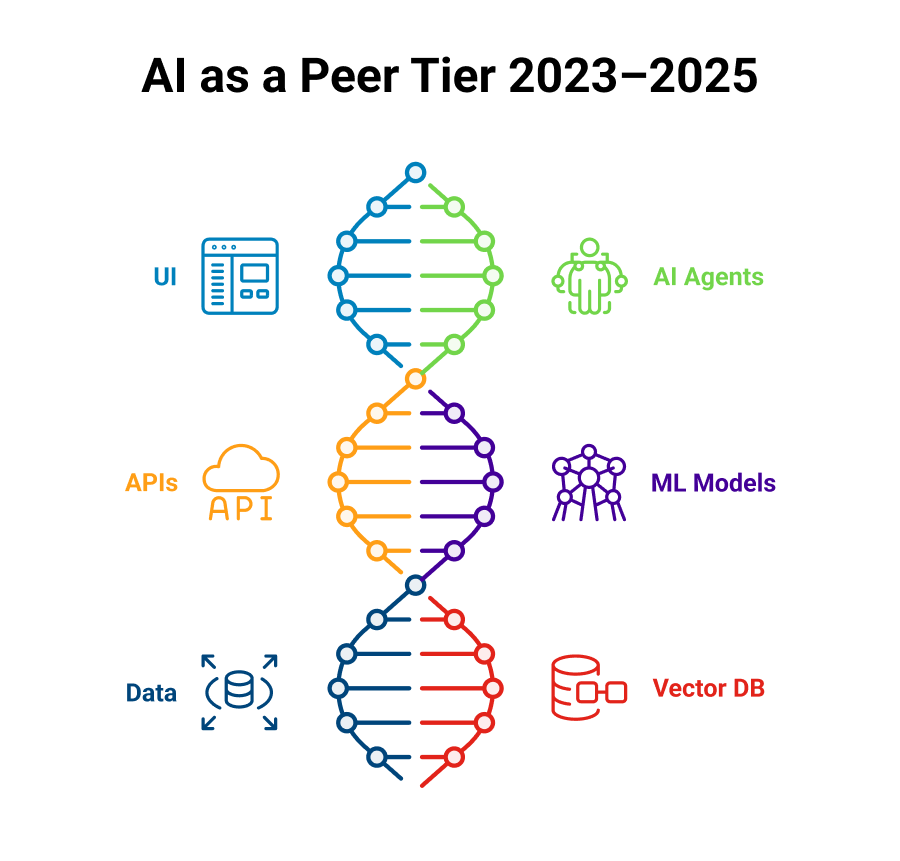

2023–2025: AI Becomes a Peer Tier
In recent years, something new entered the architecture: intelligence.
- AI systems—from copilots to classifiers to agentic workflows—began augmenting or replacing business logic.
- Data platforms matured into lakes and lakehouses, supporting ML pipelines and real-time decisioning.
- Vector databases, retrieval systems, and LLMs began powering recommendation engines, compliance audits, and support experiences.
In effect, AI became its own “tier,” sitting beside—or within—traditional ones.
But what’s more interesting is the design shift:
The goal is no longer just modularity—it’s adaptability. Systems must observe, decide, and evolve.
So What Now?
We still talk about presentation, logic, and data. But in practice, modern architectures are
- Distributed—logic spans APIs, functions, and models
- Composable—capabilities are mixed from vendors, platforms, and internal teams
- Observable—systems are expected to explain themselves, not just execute
Just as our cities evolved from rigid zoning to mixed-use, interconnected communities, our software architectures have evolved to meet the changing needs of business and society. The question is not whether they will continue to change—it is whether we will be ready for what comes next.
If the 2010s were about structure and the 2020s about scalability, the next wave is about sense-making: how systems can adapt intelligently, act responsibly, and align with human goals.
As AI matures and platform complexity grows, it’s worth asking:
Are we still designing systems with tiers or with intelligence at the core?
Next time you use an app, consider whether it is merely following rules or genuinely learning from your interactions. The answer might surprise you—and it definitely points to where software architecture is heading next.
